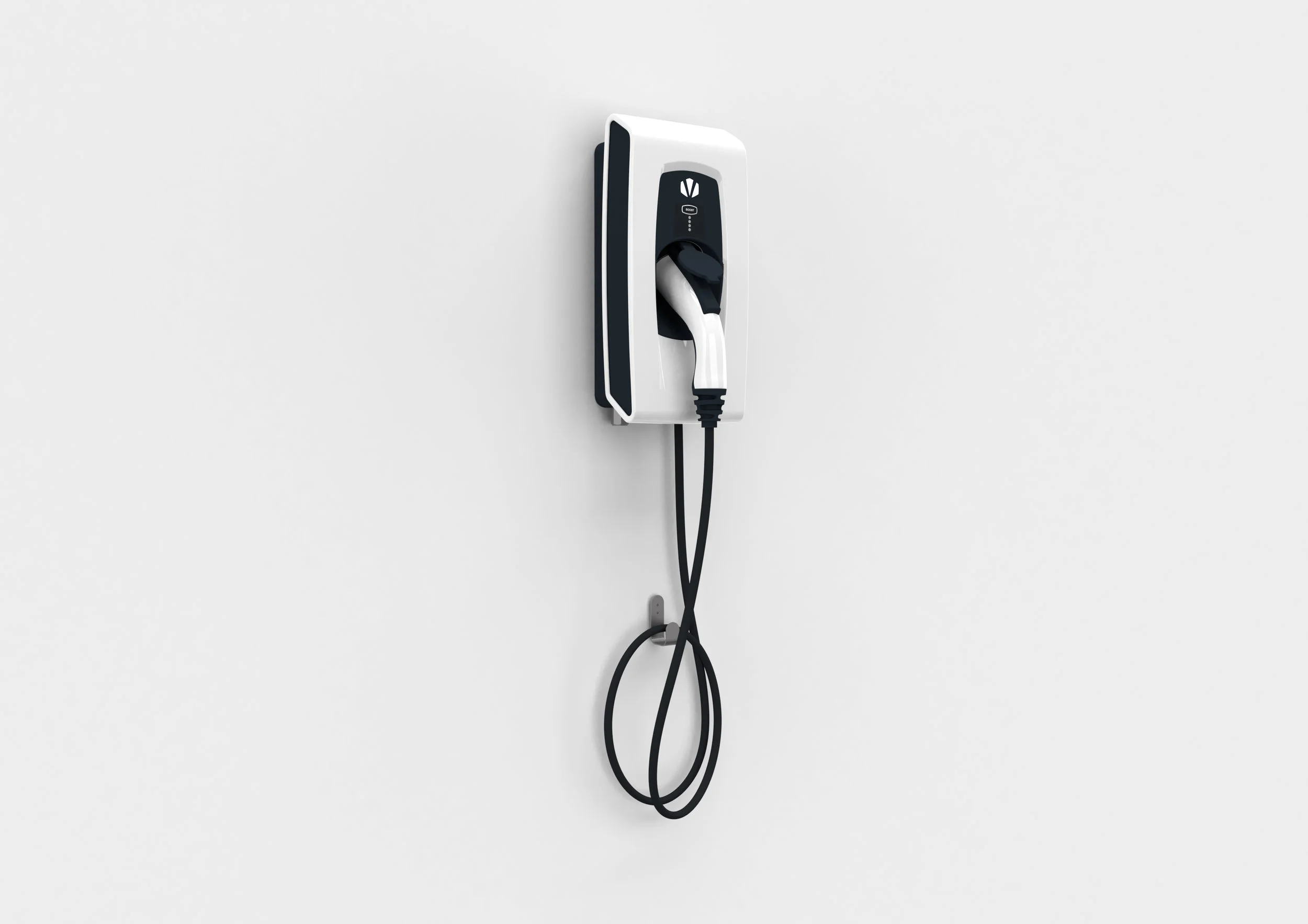

Smart Charger


The Smart Charger - our first 7kW EV charger intelligently charges your car off-peak when energy is cheaper and demand is lower. The Smart Charger acts as a ‘Smart’ Electric Vehicle charging device, being able to charge during off-peak and being able to alter the rate of charge. The OVO Smart Charger is intended for both indoor and outdoor installation.


Product features

  • The charger is able to obtain automatic software updates over the air

  • It allows customers to benefit from saving on energy costs, reducing CO2 emissions, and managing their demand profile

  • Smart Charger can operate in different optimisation modes to achieve this, including load shifting and frequency response

  • The VCharge App allows users to schedule charging as well as offering real-time and historic monitoring of charging events and remote control

  • Operational for indoor and outdoor use in all weather conditions




General Specification

  • Model name: OVO Smart Charger

  • Mode 3: Type 2 socket, Type 1 or Type 2 tethered cable

  • Overall dimensions: 200mm x 130mm x 420mm

  • Operating temperature: -20°C to 50°C

  • Storage temperature: -20°C to 80°C

  • Operating humidity: 10% to 85%

  • Installation: Indoor / Outdoor wall-mounted

  • Communication protocol: VCharge proprietary, TLS

  • User interface: Membrane panel, Customer app

  • Charging cable Length: Up to 5m

  • Certification: CE certified


Electrical Specification

  • Max. output power: 7kW (1P)

  • Input voltage: 230V, AC ± 10% (1P)

  • Output current: Variable up to 32A
