V2G - Vehicle to Grid

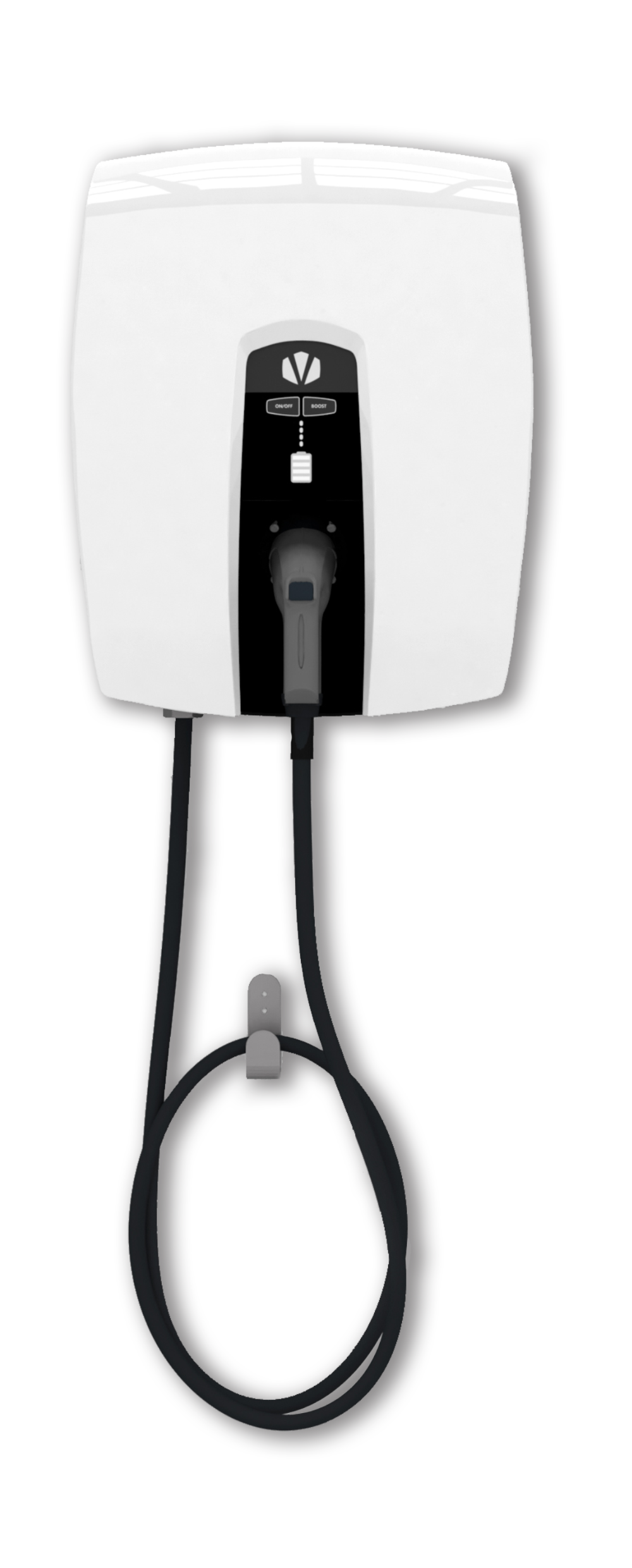

The OVO Vehicle-to-Grid  Charger is a revolutionary bi-directional intelligent charger for electric vehicles  based on CHAdeMO protocol. The charger is able to obtain automatic software updates over the air. It can provide energy to an electric vehicle and supply energy from the vehicle to the grid or to a building.


Product features

  • The charger is able to obtain automatic software updates over the air

  • It can provide energy to an electric vehicle and supply energy from the vehicle to the grid or to a building

  • It allows customers to benefit from storing energy in their vehicles for use later, saving on energy costs, reduce their CO2 emissions, and manage their demand profile

  • It can achieve this by operating in several optimisation modes including load matching, load shifting, load balancing, self-consumption maximisation and frequency response

  • The VCharge App allows users to schedule charging as well as offering real-time and historic monitoring of charging events and remote control.

  • Operational for indoor and outdoor use in all weather conditions


General Specification

  • Model name: OVO Vehicle-to-Grid Charger

  • Mode: Mode 4: CHAdeMO protocol

  • Overall dimensions: 520mm x 210mm x 690mm

  • Operating temperature: -25°C to 50°C

  • Storage temperature: -20°C to 80°C

  • Operating humidity: 10% to 85%

  • Installation: Indoor / Outdoor wall-mounted

  • User Interface: Membrane panel, Customer app, Emergency stop

  • Grid connections: G83, G59

  • Certification: CE certified, CHAdeMO certified

  • ChargingcCable length: Up to 5m

  • Plug type connector: CHAdeMO

  • Cooling: Forced air

  • Communication protocol: VCharge proprietary, TLS


Safety Features

  • Emergency stop button: Yes

  • Short-circuit protection: Yes

  • Over-current protection: Yes

  • Isolation system: Galvanic

  • AC earth leakage protection: Yes

  • DC earth leakage protection: Yes


Electrical Specification

Input - AC (from the grid)

  • Nominal input power: 6kW

  • Maximum continuous input current: Variable up to 32A

  • Nominal frequency: 50Hz

Output - AC (to the grid)

  • Nominal output power: 6kW

  • Output voltage: 230V, AC ± 10% (1P)

  • Maximum continuous output current: Variable up to 32A

  • Nominal frequency: 50Hz

Output - DC (into vehicle)

  • Maximum DC Power: 6kW

  • Maximum input voltage: 500V (360-380V nominal)

  • Maximum input current: 15A DC
